A complete VIVO package
LED cabinets, NovaStar processor, mounting, signal and power cabling, flight cases where needed and spare parts, delivered as one production-ready system.
Live Series
VIVO
Motion. Impact. Presence.
ArtePixel VIVO is the live-production series for camera-facing stages, IMAG, streaming and dynamic content, with fine-pitch indoor configurations and protected IP65 GOB options for outdoor use.
A 7,680–9,820 Hz refresh rate, 16–22 bit+ grayscale processing and high-end NovaStar receiving cards keep motion and low-light gradients clean under changing stage lighting. VIVO can be planned as a fixed, stacked, flown or touring system.
7,680–9,820 Hz
Refresh rate
1,000–1,200+ nits
Brightness
16–22 bit+
Grayscale
<3 ms
Typical latency
IP20 / IP65
Indoor / GOB
[ live performance ]
Built for the
moment between
signal and sight.

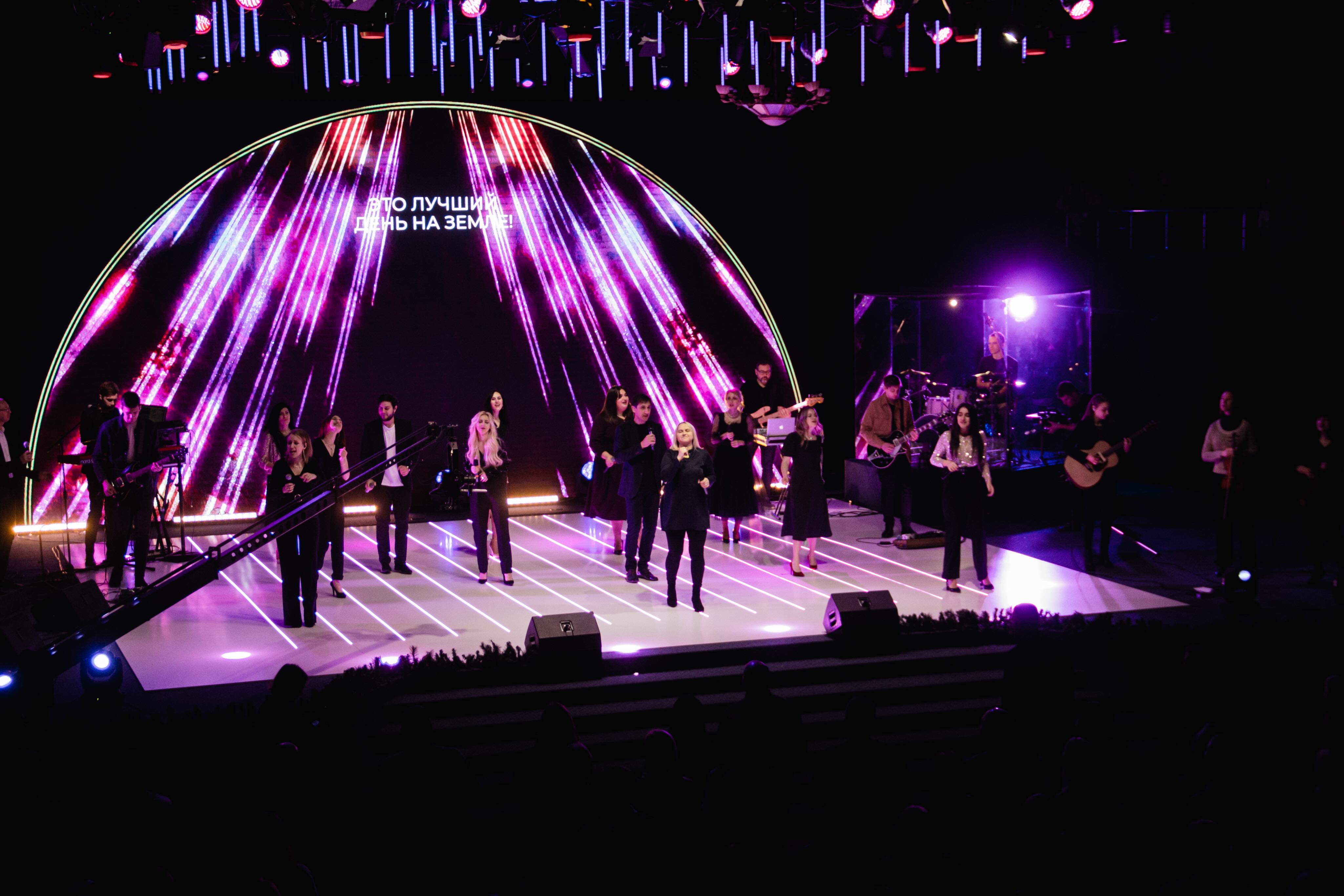

STAGE: Dynamic content under changing light.
[ engineered to perform ]
Control inside
every cabinet.
VIVO is specified as a complete system: LED, drivers, receiving cards and processing configured to work together.
7,680–9,820 Hz
REFRESH
High-end NovaStar
RECEIVING CARDS
16–22 bit+
GRAYSCALE PROCESSING
Indoor + Outdoor
CONFIGURATIONS
[ what you get ]
From signal plan
to first show
We design, deliver, install and support the complete visual system, so your team can focus on the room, the cameras and the content.
Camera workflow in mind
Refresh, processing and brightness are specified around the cameras, the room and the content. IMAG, streaming and recording stay part of the plan from the first layout.
Planned around the stage
Before production starts, we match pitch, screen size and structure to viewing distance, stage width, rigging, power and FOH position. The system fits the production, not a template.
Installed and calibrated on site
Our team assembles, aligns, powers, configures and calibrates the screen in the final environment, then walks your team through the operating workflow they will use after handover.
No hidden costs
Every cabinet, cable, case and spare part is accounted for before you commit. No surprise fees. No extra line items after the room is already designed.
Backed for years
A 3-year warranty covers all parts: modules, power supplies, cables and processor. If something fails, we replace it, and the team that planned the screen stays on the line.
Pixel pitch
P1.56
P1.87
P2
P2.5
Pixel pitch
1.5625 mm
1.875 mm
2.0 mm
2.5 mm
Closest viewer
1.5 m
1.8 m
2.0 m
2.5 m
Density / m²
409,600 px/m²
284,444 px/m²
250,000 px/m²
160,000 px/m²
Refresh rate
7,680–9,820 Hz
Brightness
1,000–1,200+ nits
Colour processing
16–22 bit+ grayscale
Viewing angle
160° H / 160° V
Cabinet size
500 × 500 / 500 × 1000 mm
Cabinet weight
6.5 kg / 11 kg
Serviceability
Front / Rear service options
Curving
Optional
Install options
Fixed / stacked / flown / touring
Panel material
Die-cast aluminum
LED type
SMD / GOB upgrade
IP rating
IP20 indoor / IP65 with GOB option
Receiving cards
High-end NovaStar receiving cards
Signal chain
NovaStar processing and control
Camera workflow
Shutter Fit / frame sync options
Latency
<3 ms typical configuration
Voltage
AC100–240V
Power draw
≈ 240 W/m² average
Lifespan
100,000 hours
Warranty
3 years, all parts
Not sure which pitch fits your production? Send the wall size, closest viewing distance and camera workflow. We’ll size it for you.
Send wall size
[ client voice ]
Markus Wenz on the ArtePixel LED wall
“When we switched from projectors to a full-size LED Wall, it was a game changer. The screen became the visual heartbeat of our worship and events — vibrant, immersive, and deeply engaging. As a large church welcoming thousands each week, we needed a solution that could truly deliver. And what impressed us most is its reliability: more than three years later, the screen still performs flawlessly.
It’s brought new life to everything we do, and the response from our congregation and guest speakers has been overwhelmingly positive.”
[ projects ]
In rooms like yours.
Installations across Europe: worship halls, live stages and venues where the screen has to work in front of people and cameras.
All projects
[ faq ]
Questions before planning a VIVO system
PRIMA is the foundation for dependable fixed installations. VIVO adds 7,680–9,820 Hz refresh, 16–22 bit+ grayscale processing and high-end NovaStar receiving cards for live camera work, IMAG and dynamic stage content.
Yes. VIVO is built for camera-facing stages where live feeds, IMAG, streaming and recording are part of the same production. High refresh and deeper grayscale processing help the screen remain clean and predictable under changing light.
The closest viewing distance is the starting point: P1.56 from around 1.5 m, P1.87 from 1.8 m, P2 from 2 m and P2.5 from 2.5 m. Screen size, camera framing and content are considered with it.
Yes. VIVO includes indoor and outdoor configurations. Brightness, protection, cabinet format and mounting are selected for the actual environment and production workflow.
Yes. VIVO can be specified for permanent installation, ground stacking, flown structures or repeatable touring use, including flight cases and the required signal and power distribution.
Send the approximate wall size, closest viewing distance, indoor or outdoor environment, installation method, room photos and camera workflow. We will define the pitch, brightness, structure and NovaStar control system around the production.
[ compare ]
Need camera-safe performance?
VIVO is built for live camera work, IMAG and dynamic stage content. If your project needs studio-grade HDR or broadcast-critical colour depth, EXACTA extends further.
Foundation
PRIMA
The reliable benchmark for professional indoor installations.
Refresh3,840 Hz
Brightness800–1,400 nits
ProcessingNatural
You are here
VIVO
The performance series for camera-ready output across live, rental and changing productions.
Refresh7,680 Hz
Brightness1,000+ nits
Processing16-bit
Studio-Grade
EXACTA
Studio-grade precision and MicroLED depth for broadcast and flagship spaces.
Refresh7,680+ Hz
Brightness1,200+ nits
ProcessingHDR
Poster Format
NEXA
Standalone LED posters: one unit, or several connected into a single screen.
FormatStandalone LED poster
SetupPlug-and-play
SplicingMulti-unit, one screen
[ start your project ]
Tell us about your production
Send us the approximate wall size, viewing distance, camera workflow and a few photos of the venue. We’ll recommend the right VIVO configuration and prepare a clear proposal.
